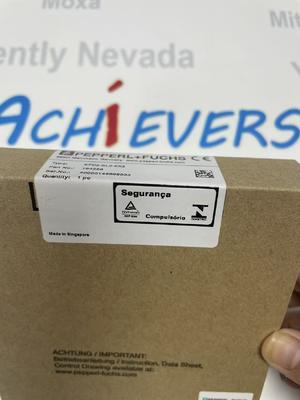

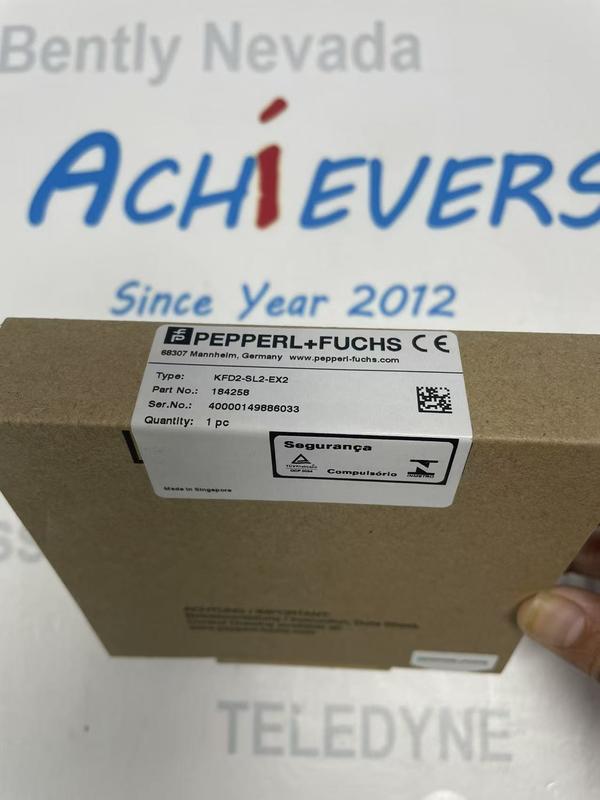

Pepperl+Fuchs KFD2-SL2-EX2 2-channel isolated barrier
Description:
Manufacturer : Pepperl+Fuchs
Product No. :KFD2-SL2-EX2
https://www.achievers-automation.com More Product
Detail:
| General |
Signal Type |
Digital Output |
|
Safety Integrity Level (SIL) |
SIL 2 (acc. to IEC/EN 61508) |
|
EU-Type Examination Certificate |
ZELM 00 ATEX 0024 |
|
Marking |
II (1) G (Ex ia Ga) IIC; II (1) D (Ex ia Da) IIIC; I (M1) (Ex ia Ma) I |
| Power Supply |
Connection |
Power Rail or Terminals 14+, 15- |
|
Rated Voltage |
20 ... 30 V DC |
|
Maximum Safe Voltage |
40 V |
|
Power Consumption |
Max. 3.3 W (at 45 mA output current) |
| Input |
Connection Side |
Control Side |
|
Connection Terminals |
7, 8, 9 |
|
Input Current |
Approx. 3 mA (at 24 V DC) |
|
Signal Level (1-signal / 0-signal) |
16 ... 30 V DC / 0 ... 5 V DC |
|
Maximum Safe Voltage |
60 V |
| Output |
Connection Side |
Field Side |
|
Connection Terminals (Channel 1 / Channel 2) |
1+, 2-, 3 / 4+, 5-, 6- |
|
Internal Resistor |
272 Ω |
|
Maximum Output Current |
≤ 45 mA |
|
Minimum Output Voltage |
≥ 11.7 V |
|
Open Loop Voltage |
Min. 24 V |
|
Energized / De-energized Delay |
≤ 20 ms / ≤ 20 ms |
|
Output Ex Rating |
Ex ia |
|
Output Maximum Voltage / Current / Power |
28 V / 110 mA / 770 mW (linear characteristic) |
| Line Fault Detection |
Short-Circuit Threshold |
< 50 Ω |
|
Open-Circuit Threshold |
> 10 kΩ |
|
Test Current |
< 650 µA |
| Galvanic Isolation |
Input/Output / Input/Power Supply / Power Supply/Output |
Reinforced insulation (IEC/EN 61010-1), 300 Vₑff rated insulation voltage |
| Indicators & Settings |
Display Elements |
LEDs |
|
Control Elements |
DIP Switch |
|
Configuration Method |
Via DIP Switches |
|
Labeling |
Space for front labeling |
| Environmental & Mechanical |
Ambient Temperature |
-20 ... 50 °C (-4 ... 122 °F) |
|
Degree of Protection (IP Rating) |
IP20 (IEC 60529:2001) |
|
Connection Type |
Screw Terminals |
|
Dimensions (W x H x D) |
20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch), Housing Type B2 |
|
Mass |
Approx. 150 g |
|
Mounting |
35 mm DIN Mounting Rail (acc. to EN 61010-1:2010) |
| Compliance |
Electromagnetic Compatibility (EMC) |
Directive 2014/30/EU; EN 61326-1:2013 (industrial locations); NE 21:2006 |
|
Protection Against Electrical Shock |
