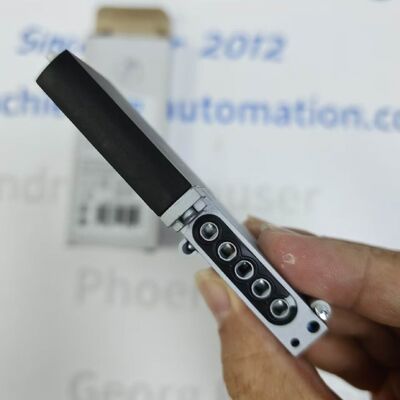

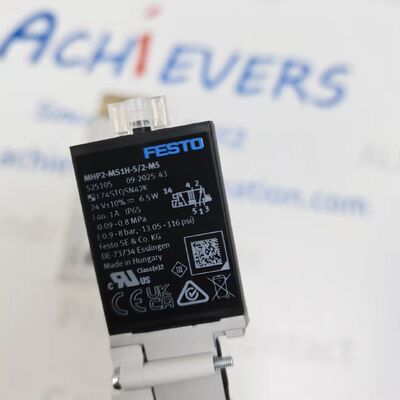

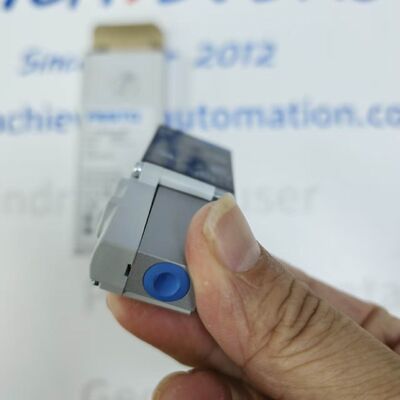

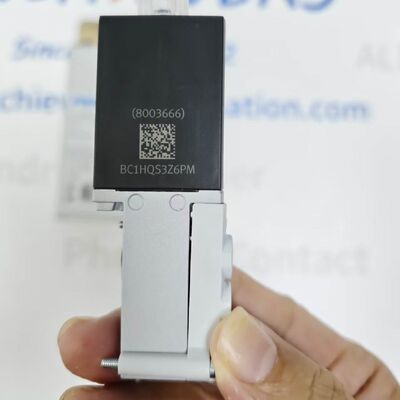

Festo MHP2-MS1H-52-M5 High-Speed 5/2 Way Solenoid Valve M5 Thread
Description:
Manufacturer : Festo
Product No. : MHP2-MS1H-52-M5
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The Festo MHP2-MS1H-52-M5 belongs to the MHP2 high-speed solenoid valve family, designed for ultra-fast pneumatic channel switching. It is a direct-actuated 5/2-way monostable poppet valve with mechanical spring reset.
This compact 10mm width valve adopts pressure-relieved poppet structure and soft NBR/HNBR sealing, delivering extremely short response time and high switching frequency up to 300Hz.
Detail:
| Parameter Item |
Technical Specification |
| Full Part Number |
MHP2-MS1H-52-M5 (MHP2-MS1H-5/2-M5) |
| Manufacturer |
Festo |
| Factory Order Code |
525105Festo |
| Valve Function |
5/2-way, Monostable (Solenoid + Spring Return) |
| Actuation Mode |
Direct Acting Poppet Valve |
| Nominal Size |
2 mmFesto |
| Rated Flow Rate |
90 l/min (DIN 1343)Festo |
| Valve Width |
10 mm; Grid Dimension: 14 mmFesto |
| Pneumatic Ports |
Port 2, 4: M5 female thread; Port 1, 3, 5: Sub-base connection |
| Control Voltage |
24 V DC (±10% tolerance)Festo |
| Coil Power |
Peak 6.5 W, Holding 1.625 W (current reduction) |
| Electrical Connector |
2-pin ZC plug |
| Manual Override |
Non-detenting push buttonFesto |
| Mounting Method |
PR Rail Manifold Installation |
| Body Material |
Die-cast Zinc Alloy |
| Seal Material |
NBR + HNBR Rubber |
| Net Weight |
70 g |
| Switch-on Time |
≤ 2 ms; Switch-off Time: 1.7 msFesto |
| Specification Item |
Technical Value |
| Operating Pressure Range |
-0.9 bar ~ 8 bar (-0.09 MPa ~ 0.8 MPa)Festo |
| Max Switching Frequency |
300 HzFesto |
| Operating Medium |
Clean compressed air ISO 8573-1:2010 Festo[7:4:4] |
| Lubrication |
Lubricated or non-lubricated air (keep consistent)Festo |
| Ambient Operating Temperature |
-5°C ~ +40°C |
| Medium Temperature |
-10°C ~ +60°C |
| Ingress Protection Class |
IP65 (Dust-tight, splash-proof)Festo |
| Corrosion Resistance Class |
CRC 2 (Moderate Corrosion Stress) |
| Continuous Duty |
100% ED long-term energization allowed |
| Flow Direction |
Non-reversible |
| Certifications |
CE, cULus Recognized, RCM, RoHS & UKCA CompliantFesto |
| Vibration Standard |
FN 942017-4, EN 60068-2-6 Level 2Festo |
