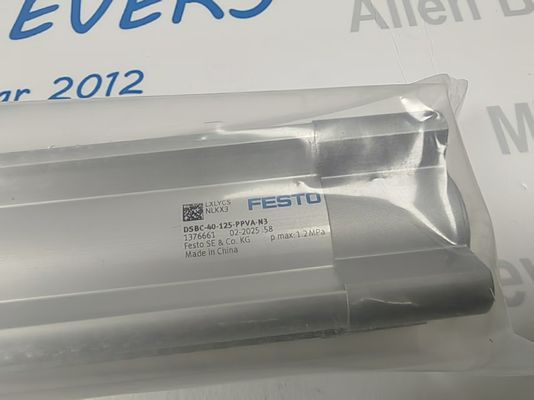

Festo D5BC-40-125-PPVA-N3 high-reliability ISO standard profile cylinder
Description:
Manufacturer : Festo
Product No. :D5BC-40-125-PPVA-N3
https://www.achievers-automation.com More Products
The Festo D5BC-40-125-PPVA-N3 is a high-reliability ISO standard profile cylinder engineered for precision linear motion in industrial automation. As part of Festo’s trusted cylinder range, it features a 40 mm bore diameter and 125 mm stroke, delivering consistent force output for clamping, positioning, material handling, and assembly tasks. Compliant with ISO 15552 (ISO 6431, VDMA 24562) standards, this double-acting cylinder is equipped with adjustable pneumatic cushioning at both ends to minimize end-position impact and noise. Its robust construction, compact design, and sensor-ready configuration ensure seamless integration into diverse industrial systems, from automotive manufacturing to pharmaceutical production.
Detail:
| Brand & Model |
Festo D5BC-40-125-PPVA-N3 (Alternative Part Reference: 1376661) |
| Type |
ISO Standard Profile Cylinder, Double-Acting, Single Piston Rod |
| Core Dimensions |
- Bore Diameter: 40 mm
- Stroke Length: 125 mm
- Overall Dimensions (LxWxH): 286.9 x 54 x 54 mm
- Cushioning Length: 19 mm (consistent with DSBC series) |
| Operating Parameters |
- Operating Pressure Range: 0.6 bar to 12 bar
- Ambient Temperature Range: -20 °C to 80 °C
- Operating Medium: Compressed air (ISO 8573-1:2010 Class 7:4:4)
- Lubrication: Optional (consistent use required if lubricated) |
| Force Output |
- Theoretical Force (Advance Stroke, 6 bar): 754 N
- Theoretical Force (Return Stroke, 6 bar): 633 N |
| Mechanical Data |
- Basic Weight (0 mm Stroke): 740 g
- Total Weight (125 mm Stroke): 1195 g
- Additional Weight per 10 mm Stroke: 37 g
- Piston Rod Thread: M12 x 1.25 (Male)
- Housing Material: Anodised aluminium alloy |
| Connections & Mounting |
- Pneumatic Connection: G 1/4
- Mounting Type: Compatible with Festo mounting accessories (via female thread)
- Mounting Orientation: Any position |
| Performance & Protection |
- Impact Energy (End Positions): 0.7 J
- Corrosion Resistance: Suitable for moderate industrial environments
- Cleanroom Compatibility: ISO 14644-1 Class 5 (consistent with DSBC series) |
| Certifications & Standards |
- Compliance: ISO 15552, ISO 6431, VDMA 24562, RoHS
- Country of Origin: Germany |
| Position Detection |
- Sensor Compatibility: Proximity switches
- Sensor Mounting: Integrated slot on one profile side |
