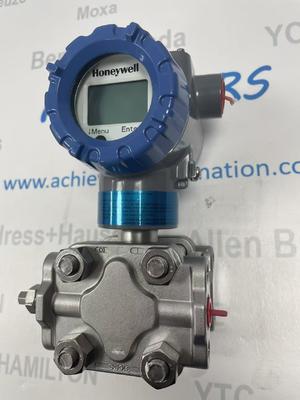

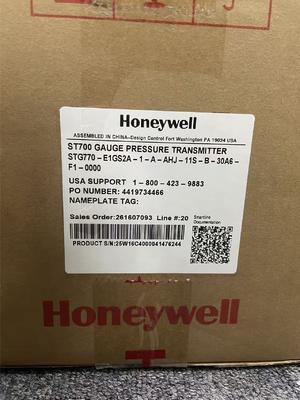

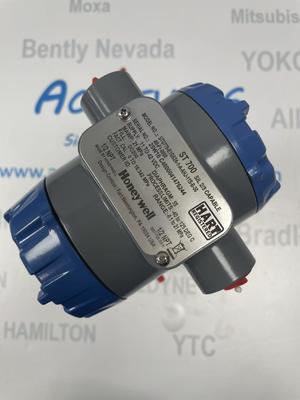

Honeywell STG770-E1GS2A-1-A-AHJ-11S-B-30A6-F1-0000 precision gauge pressure transmitter
Manufacturer : Honeywell
Product No. : STG770-E1GS2A-1-A-AHJ-11S-B-30A6-F1-0000
https://www.achievers-automation.com More Products
Description:
The Honeywell STG770-E1GS2A-1-A-AHJ-11S-B-30A6-F1-0000 is a high-precision gauge pressure transmitter belonging to the SmartLine® ST700 product family, engineered for reliable pressure measurement and control in industrial process environments. Leveraging advanced piezoresistive sensor technology with on-chip temperature compensation, it delivers exceptional accuracy and long-term stability across wide pressure and temperature ranges. This transmitter features a modular design, dual-seal safety construction, and seamless integration with industrial control systems (including Experion® PKS), making it ideal for critical applications in oil and gas, chemical processing, power generation, and manufacturing.
Detail:
| Product Model |
STG770-E1GS2A-1-A-AHJ-11S-B-30A6-F1-0000 |
| Manufacturer |
Honeywell |
| Product Series |
SmartLine® ST770 |
| Device Type |
Gauge pressure transmitter |
| Measurement Principle |
Piezoresistive sensor with on-chip temperature compensation |
| Pressure Range (URL) |
3000 psi (210 bar) |
| Pressure Range (LRL) |
-14.7 psi (-1.0 bar) |
| Minimum Span |
30 psi (2.1 bar) |
| Turndown Ratio |
100:1 |
| Accuracy |
0.055% of span (standard); 0.04% of span (optional) |
| Long-Term Stability |
0.02% of URL per year for 10 years |
| Response Time |
As fast as 100 ms |
| Display Type |
Alphanumeric LCD |
| Process Connection |
1/2 inch NPT female |
| Diaphragm Material |
316L stainless steel |
| Head Material |
316 stainless steel |
| Electrical Connection |
Polarity-insensitive terminals (compatible with F1 wiring configuration) |
| Output/Communication |
Likely HART® 7.0 (consistent with SmartLine ST770 series standards) |
| Supply Voltage |
10.8 to 42.4 VDC (for HART® communication) |
| Load Resistance |
0 to 1440 ohms (for HART® output) |
| Operating Temperature Range |
-40 °F to 185 °F (-40 °C to 85 °C) |
| Maximum Process Temperature |
257 °F (125 °C) |
| Storage Temperature Range |
-40 °F to 257 °F (-40 °C to 125 °C) |
| Safety Design |
Integral dual seal (compliant with ANSI/NFPA 70-202 and ANSI/ISA 12.27.0) |
| Functional Safety Compliance |
SIL 2/3 (standard) |
| Compatibility |
Fully tested for integration with Honeywell Experion® PKS |
| Protection Class |
IP67 (typical for industrial process transmitters) |
