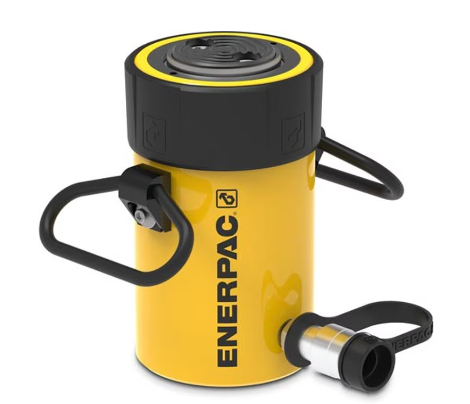

Enerpac RC504 General Purpose Hydraulic Cylinder | 55.2 Ton Capacity

Description:

Manufacturer : Enerpac

https://www.achievers-automation.com      More Products

Product Overview

The ​Enerpac RC504​ is a high-capacity general purpose hydraulic cylinder designed for heavy-duty industrial applications requiring exceptional force in a compact package. Part of Enerpac's advanced RC-TRIO series, this single-acting hydraulic jack delivers 55.2 tons (498 kN) of force with a 4-inch stroke, making it ideal for lifting, pressing, positioning, and alignment tasks across various industries. Featuring a pre-tensioned spring for fast retraction and robust construction for durability, it represents the next generation of Enerpac's legendary RC-Series cylinders with enhanced performance and reliability.

Key Features

• ​High Capacity​ - 55.2 ton (498 kN) maximum lifting capacity

• ​4-inch Stroke​ - Substantial travel for versatile applications

• ​Fast Retraction​ - Pre-tensioned spring for quick plunger return

• ​10,000 PSI Rating​ - Maximum operating pressure capability

• ​Compact Design​ - Optimized height-to-capacity ratio

• ​Durable Construction​ - Hardened steel components for long service life

• ​Versatile Mounting​ - Multiple mounting options with standard base holes

• ​Safety Features​ - Built-in safety lock ring and overload protection

Technical Specifications

Performance Characteristics

Force & Capacity

• ​Rated Capacity​ | 55.2 tons (498 kN) at 10,000 psi

• ​Overload Capacity​ | Built-in safety margin above rated capacity

• ​Force Generation​ | Linear force application throughout stroke

• ​Pressure Requirements​ | 10,000 psi for maximum capacity

Stroke & Travel

• ​Total Stroke​ | 4.00 inches (101 mm)

• ​Height Extension​ | 8.94" to 12.94" (227mm to 328mm)

• ​Positioning Accuracy​ | Precise control throughout stroke

• ​Retraction Speed​ | Fast spring-assisted return

Mechanical Specifications

Physical Dimensions

• ​Collapsed Height (A)​​ | 8.94 inches (227 mm)

• ​Extended Height (B)​​ | 12.94 inches (328 mm)

• ​Outside Diameter (D)​​ | 5.00 inches (127 mm)

• ​Cylinder Bore (E)​​ | 3.75 inches (95.2 mm)

• ​Plunger Diameter (F)​​ | 3.13 inches (79.4 mm)

• ​Saddle Diameter (J)​​ | 2.80 inches (71 mm)

• ​Saddle Protrusion (K)​​ | 0.11 inches (2 mm)

Mounting Features

• ​Base Mounting Holes​ | Standard 1/2-13 UN threads

• ​Bolt Circle (U)​​ | 3.75 inches (95 mm) diameter

• ​Thread Depth (Z)​​ | 0.75 inches (19 mm)

• ​Optional Tilt Saddle​ | Available for angled applications

• ​Collar Thread (W)​​ | 5-12 UN for accessories

Construction Details

Materials & Finish

• ​Cylinder Body​ | Hardened steel construction

• ​Plunger​ | High-strength steel with hardened finish

• ​Base​ | Machined steel with mounting provisions

• ​Saddle​ | Steel contact surface with protective coating

• ​Seals​ | High-pressure hydraulic seals

• ​Spring​ | Pre-tensioned retraction spring

Design Features

• ​Spring Retraction​ | Fast, positive plunger return

• ​Safety Lock Ring​ | Mechanical safety lock provision

• ​Port Location​ | Base-mounted hydraulic connection

• ​Surface Finish​ | Corrosion-resistant treatment
